SPECIFICATION

• Display : 2.4-inch TFT LCD Color Screen

• Fingerprint Capacity (optional) : 3,000

• Card Capacity : 5000(Optional) ID or Mifare card

• Transaction Capacity : 30,000

• Sensor : Z-ID Sensor

• Algorithm Version : ZKFinger V10.0

• Communication : RS232*, RS485*, TCP / IP, USB-host, Wi-Fi

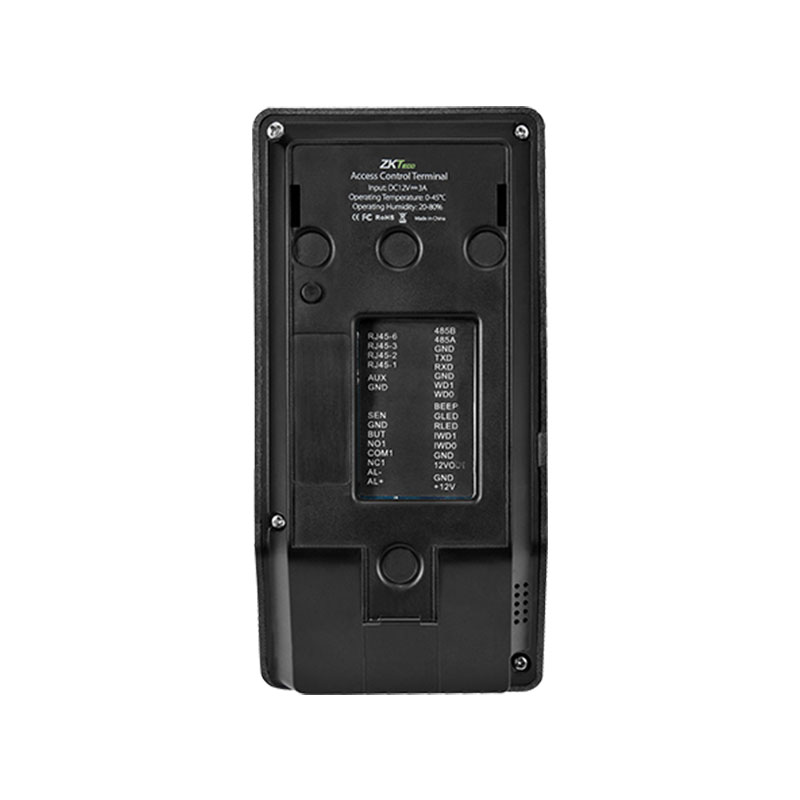

• Access Control Interface : 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm

• Wiegand Signal : Input, Output

• Aux. Input : 1ea for linkage function

• Functions : DST, Automatic Status Switch (Optional), Record query, T9 input,

                     14 digit user ID (Optional), Anti-passback, Scheduled-Bell, Printer(Optional), ADMS

• Power Supply : 12V DC, 3A

• Operating Temperature : 0 °C - 45 °C

• Operating Humidity : 20% - 80%

• Dimension: 158.5 x 78.0 x 19.4mm (LxWxH)
