SPECIFICATION

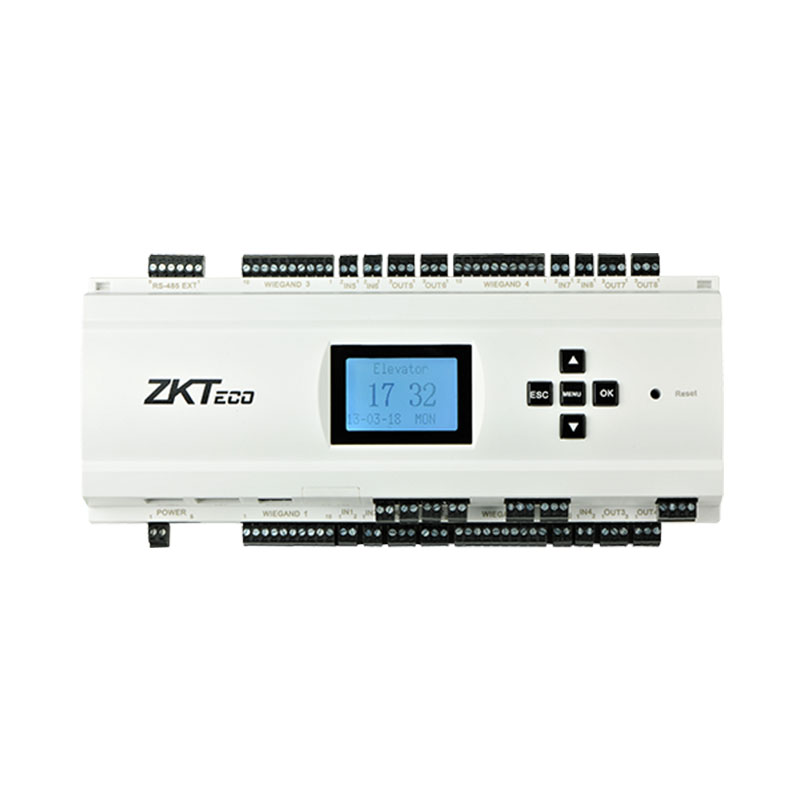

• Floor Button Control Relay : 10

• Fingerprint Capacity (optional) : 3000

• RFID Card Capacity : 30,000

• Event Capacity : 100,000

• Power Supply : 12V DC 1A

• Communication to PC : TCP/IP, RS485*

• Communication to EX16 : RS485

• Number of supported EX16 : 3

• Dimension : 242mm × 95mm × 60mm (L*D*H)

• Net Weight : 0.8Kg

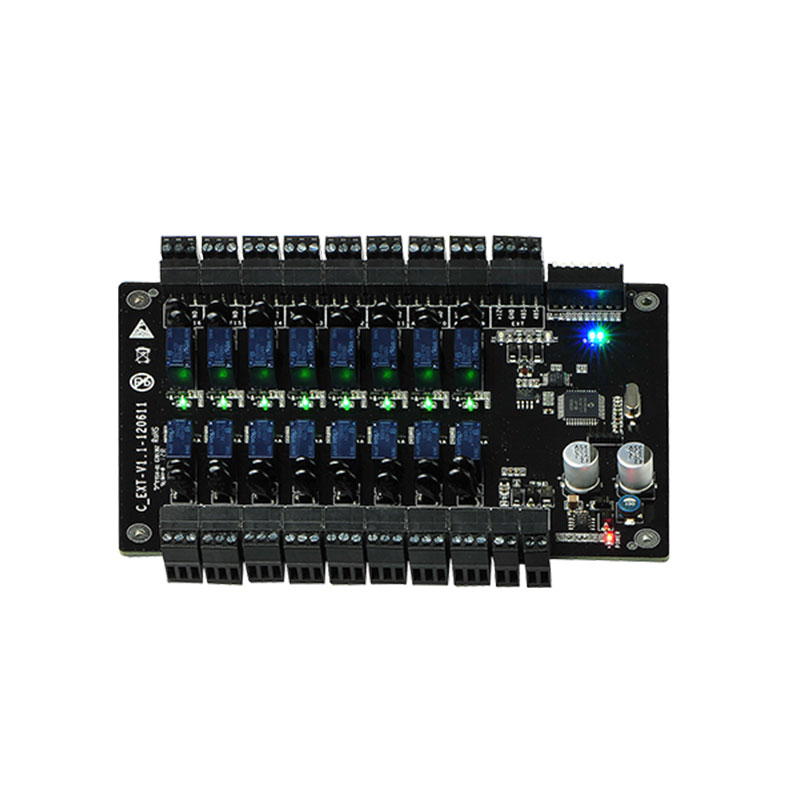

• Floor Button Control Relay : 16

• Communication to EC10 : RS485

• RS485 Address : Set by DIP switch

• Power Supply : 12V DC 1A

• Dimension : 160mm × 106mm (L*D*H)

• Net Weight : 0.2Kg
